Char-Lynn Hydraulic Motor Interchange

103-1051-012 CharLynn Interchange Hydraulic Motor

Drop in replacement for CharLynn 103-1051-012 low speed, high torque hydraulic motor. 5.9 cu. in. / rev displacement. Maximum pressure 2576 PSI continuous, maximum pressure 2944 PSI intermittent. Torque 2124 in-lb...

CharLynn 103-1050-012 Interchange Hydraulic Motor

CharLynn 103-1050-012 interchange Low speed, high torque. 4.75 cubic inch displacement. 4 bolt flange mount. SAE 6B spline shaft. 1/2" NPT ports. 750 RPM maximum speed. 190 inch lbs. of torque. 15.8 GPM maximum flow rate. 2576 PSI maximum pressure...

CharLynn 101-1767-009 Hydraulic motor LSHT 9.5 cubic inch displacement

CharLynn 101-1767-009 interchange low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous,...

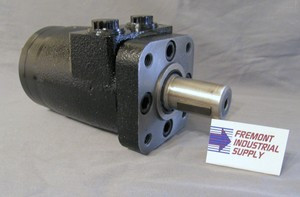

CharLynn 101-1766-009 Interchange Hydraulic Motor

Drop in replacement for CharLynn 101-1766-009 low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous,...

CharLynn 101-1763-009 interchange Hydraulic motor LSHT 9.5 cubic inch displacement

CharLynn 101-1763-009 interchange low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous,...

CharLynn 101-1756-009 interchange hydraulic motor

Drop in replacement for CharLynn 101-1756-009 low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb...

CharLynn 101-1755-009 Interchange Hydraulic Motor

Drop in equivalent to CharLynn 101-1755-009 low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous,...

CharLynn 101-1752-009 interchange hydraulic motor

CharLynn 101-1752-009 interchange low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous,...

CharLynn 101-1728-009 interchange hydraulic motor

Drop in replacement for CharLynn 101-1728-009 low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb...

CharLynn 101-1727-009 Interchange Hydraulic Motor

Drop in replacement for CharLynn 101-1727-009 low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous,...

CharLynn 101-1726-009 interchange hydraulic motor

CharLynn 101-1726-009 interchange hydraulic motor LSHT. 3.15 cubic inch displacement per revolution. 880 maximum RPM. 717 inch lbs. of torque. 11.85 maximum GPM flow rate. 2400 PSI maximum operating pressure. SAE 6B 6 tooth spline shaft. 1/2" NPT ports...

CharLynn 101-1724-009 interchange Hydraulic motor LSHT 9.5 cubic inch displacement

CharLynn 101-1724-009 interchange low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous,...
