Char-Lynn Hydraulic Motor Interchange

130-1232-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1232-003 low speed, high torque hydraulic motor. 19.0 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2060 PSI intermittent. Torque 3575 in-lb...

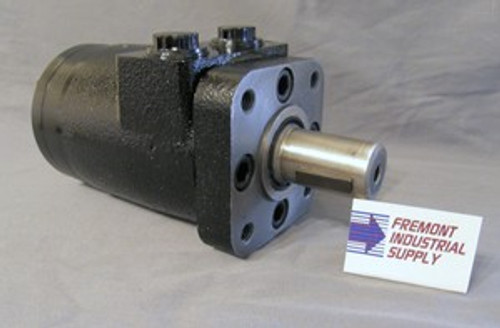

130-1231-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1231-003 interchange low speed, high torque hydraulic motor. 14.1 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2060 PSI intermittent. Torque 3185...

130-1230-003 CharLynn interchange hydraulic motor

CharLynn 130-1230-003 interchange low speed, high torque hydraulic motor. 11.6 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2530 in-lb. continuous,...

CharLynn 130-1229-003 interchange hydraulic motor

CharLynn 130-1229-003 interchange low speed, high torque hydraulic motor. 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous,...

130-1228-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1228-003 low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous,...

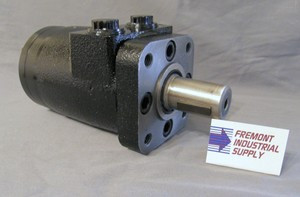

101-1872-009 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 101-1872-009 low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous,...

130-1226-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1226-003 hydraulic motor LSHT. 3.15 cubic inch displacement per revolution. 880 maximum RPM. 717 inch lbs. of torque. 11.85 maximum GPM flow rate. 2400 PSI maximum operating pressure. SAE 6B spline shaft. #10 SAE...

101-1761-009 CharLynn Interchange Hydraulic Motor

Drop in replacement for CharLynn 101-1761-009 hydraulic motor LSHT. 3.15 cubic inch displacement per revolution. 880 maximum RPM. 717 inch lbs. of torque. 11.85 maximum GPM flow rate. 2400 PSI maximum operating pressure. SAE 6B spline shaft. #10 SAE...

130-1218-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1218-003 low speed, high torque hydraulic motor. 19.0 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2060 PSI intermittent. Torque 3575 in-lb...

130-1217-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1217-003 low speed, high torque hydraulic motor. 14.1 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2060 PSI intermittent. Torque 3185 in-lb...

130-1216-003 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 130-1216-003 low speed, high torque hydraulic motor. 11.6 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2530 in-lb...

101-3699-009 CharLynn interchange hydraulic motor

Drop in replacement for CharLynn 101-3699-009 low speed, high torque hydraulic motor. 11.6 cu. in. / rev displacement. Maximum pressure 1625 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2530 in-lb...
