Product Description

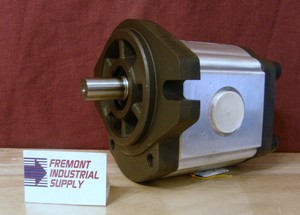

Drop in equivalent to Haldex Barnes WP09A1B230R03CA103N hydraulic gear pump. 1.22 cubic inch displacement per revolution. 9.50 GPM @ 1800 RPM. 2900 PSI maximum operating pressure. 2000 RPM rated speed, 3000 RPM maximum speed. SAE A two bolt flange mount. #12 SAE inlet port with #10 SAE outlet port. 5/8" diameter keyed shaft. Right hand rotation (clockwise). Aluminum housing.
