Product Description

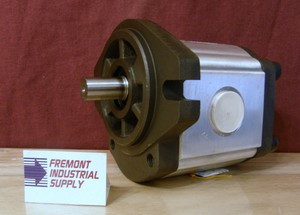

Drop in equivalent to Eaton 26003-LZR hydraulic gear pump. .61 cubic inch displacement per revolution. 4.75 GPM @ 1800 RPM. 3650 PSI maximum operating pressure. 2000 RPM rated speed, 3600 RPM maximum speed. SAE A two bolt flange mount. #12 SAE inlet port with #10 SAE outlet port. 3/4" diameter keyed shaft. Left hand rotation (counterclockwise). Aluminum housing.
The ports on this pump are located mid-chassis. This creates a balanced design which provides better flow and pressure characteristics compared to pumps that have the ports located at the rear of the pump.
