Product Description

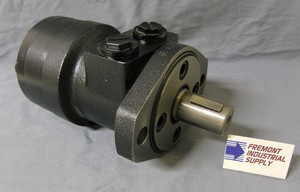

Drop in replacement for CharLynn 158-1541-001 low speed, high torque hydraulic motor. 8.0 cu. in. / rev displacement. Maximum pressure 2576 PSI continuous, maximum pressure 2944 PSI intermittent. Torque 2584 in-lb. continuous, torque 3010 in-lb. intermittent. Maximum speed 475 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 2 Bolt SAE mounting flange. 1 year warranty.
